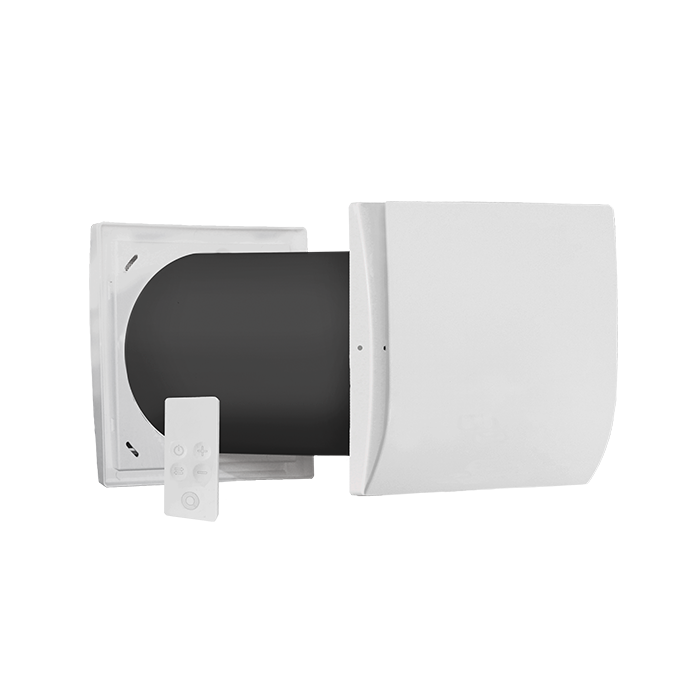

PULSAR 100 Single Room HRV Unit

APPLICATION

For installation in single room such as living room and bedroom: for a better flow balancing two units are commonly used in parallel operation, having opposite and synchronised flows.

Suitable for mounting on perimetral walls. Ideal solution for removal of CO₂ or any other indoor volatile pollutants and to prevent condensation and mould problems which inevitably damage the building as well as the occupants’ health.

SPECIFICATION

Internal ventilation unit made of high quality ABS providing long lasting shockproof and robust construction.

The unit is finished in white RAL 9010 and are UV resistant.

Multi-functional infrared remote control supplied as standard. Made from ABS, RAL 9010.

Unique design winglet-type impeller, providing enhanced aerodynamic properties, low noise and increased efficiency.

High efficient reversible EC motor with integral thermal protection, mounted on sealed for life high quality ball bearings. Designed for continuous running.

Anti-dust filter removable from inside by the tenant for maintenance. Regenerative heat exchanger with ceramic core; high thermal efficiency.

Telescopic pipe made from 100% recycled ABS, adaptable to the wall thickness.

External grille with anti-insect net and water drip guard.

FEATURES & BENEFITS

IPX4 protection degree.

Aesthetic flat front cover for modern interior design, easily removable for cleaning without the need of tools.

Alternate flow with flow reversal approx. every 70 seconds.

Multi-Speed: operation speed can be selected among 4 options (including ‘night’ speed).

Night speed manually selectable for extremely quiet operation at night and HY deactivation.

Maximum speed selection via external switch (LS) or remote room sensor. Integrated smart humidity control.

Free cooling: “extract only” or “intake only” to prevent heat exchange when not needed.

Integral led to indicate when the “free cooling” or humidity control functions are activated.

Simplified synchronisation of the units (up to 10).

Easy maintenance of the parts, heat exchanger included.

Totally recyclable plastic components.

Does not require condensate drainage.

Double insulated: no earth connection is required.

Tested to the latest standards: units are tested in the TÜV Rheinland recognised laboratory at Aerauliqa, meaning accurate, up to date information on electrical safety, performance and noise level that can be relied upon.

Designed and manufactured in accordance with EN60335-2-80 (Low Voltage Directive) and the EMC Directive (Electromagnetic Compatibility).
