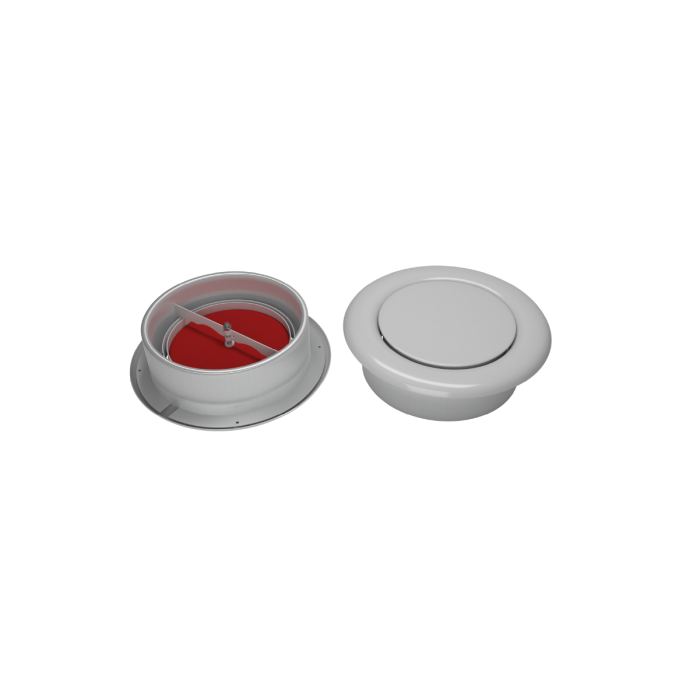

Tenmat 125mm fire rated exhaust valve RAL9016

Tenmat’s Fire Rated Air Valves are a unique and cost effective fire rated solution where recessed ceiling air valves are to be installed in fire rated floor/ceiling constructions. In a fire situation, the integral intumescent material rapidly expands to seal off the air valve to help maintain the fire resistance rating of the ceiling. This limits the risk of fire and heat spread throughout the building.

The Fire Rated Air Valves are available in all common sizes for both Extract and Supply.

The Fire Rated Air Valve is installed as normal with air flow through the air valve unaffected. The product requires no maintenance after installation. The Fire Rated Air Valves suitable for domestic homes, as well as apartments, hotels and other multiple occupancy buildings where fire ratings exist.

Features

• 60 Minutes Fire Rating in Solid Timber Joist Floor/Ceilings Constructions
• 30 Minutes Fire Rating in Metal Web Joist and Solid Timber Joist Floor/Ceiling Constructions
• No maintenance required
• Meets requirements of Approved Document B
• Simple to install

Fire Test Approvals

• Successfully Fire Tested to BS EN1365-2:1999 & BS476: Part 20: 1987.
• Tested in a plasterboard ceiling / timber floor construction for 60 minutes.
• Test Report No.: BTC 18074F & CHILT/IF10090
