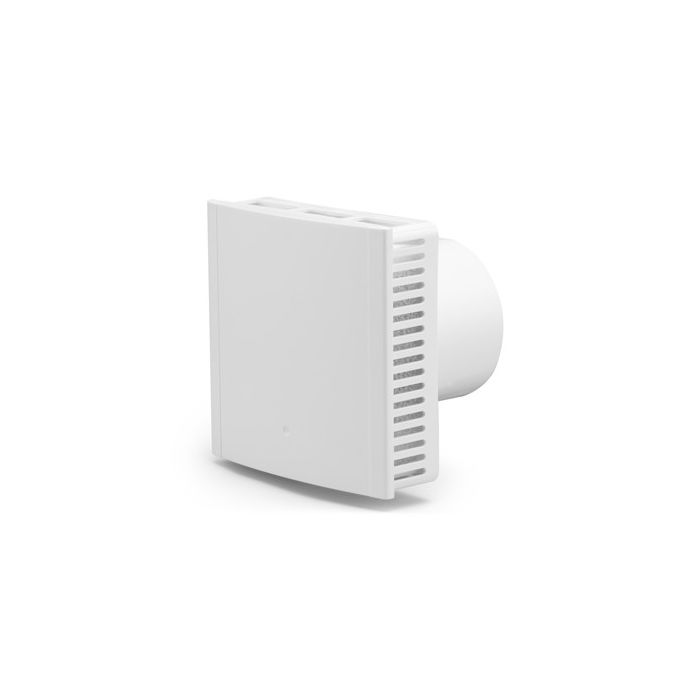

F90 Wall vent internal part white 100mm
F90 Wall vent internal part white 100mm
F90 internal part for wall mounting, designed to provide a continuous airflow into the building/house.
The vent has a unique distribution pattern.
The vent is airtight underneath the front cover while the top part allows much more airflow than the sides.
This unique construction reduces the risk of draught considerably.
The internal part contain condensation protection and an easily removed standard filter (dust/insect).
Pollen filter and Environmental filter are available as accessories.
The airflow is adjusted by the built-in regulator underneath the vent.
The damper plate has pre-pressed punch-outs so that different minimum airflowlevels can be achieved.
A high placing is recommended, preferably above a radiator. With this solution the incoming air get mixed with the convection flow of warm air ensuring maximum comfort.
The Fresh 90-serie can with advantage be used in rooms with underfloor-heating due to the unique construction of the air openings.
Please add the matching external louvre and a 100mm PVC duct if you do not have this already inside the wall.
You can custom cut the 2m PVC pipe matching your wall thickness!
Duct dimension Ø : 100 mm
Product outer dimension: 150 mm x 150 mm
Product Depth: 128 mm
Size | 100 |
---|---|
Color | White |
